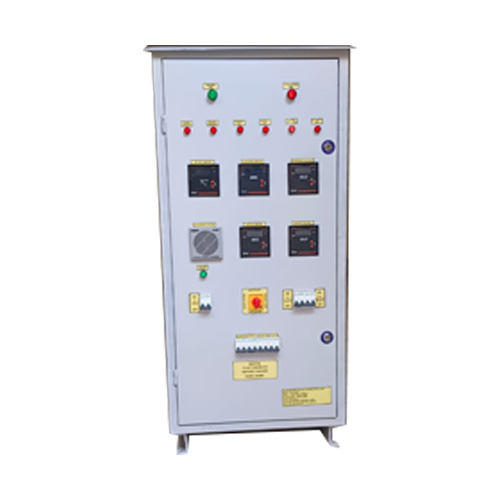

Float Cum Boost Battery Charger
Float Cum Boost Battery Charger
Types of Battery Charger
- Standard 12-volt battery charger AE-1210.
- Standard 24-volte battery charger AE-2410.
- CVCC battery charger 12v, 24v, 48v, 110v.
- Thyristor controlled battery charger.
- FCBC battery charger (All Voltage).
- Dual type FCBC battery charger.
Product Details
| Output | AC input, Charging, Float, Boost, Output U/V, O/V, EARTH FAULT, DC OUTPUT ON. |
| Input Voltage | 220Vac |
| Operating Temperature | Operating temp range : 5 deg. C to 50 deg. C. Recomended between 25 Deg. C to 40 Deg C. |
| Output Current | 32AMP |
| Usage/Application | BATTERY BANK CHARGING |
| Brand | ADITYA |
| Battery Type | LEAD ACID & VRLA BATTERY |
| Capacity (Ah) | FOR 100AH - 300AH |
| Warranty | 1 YEAR |
| Country of Origin | Made in India |
Additional Information:
- Item Code: AEFCBC11032
- Production Capacity: 100 PCS PER MONTH
- Delivery Time: 7 DAYS
- Packaging Details: WOODEN & THERMOCOL PACKING
Description :
3Phase Float cum Boost Battery Charger :
The 3Ph. input is fed to the stepdown transformer with Single Phasing Protection ( 415Vac/150Vac ). This 150Vac is then rectified and fed to voltage regulator and filter circuits. This output voltage of 150Vdc is provided at output terminals to charge the Batteries.Whenever the battery gets discharged the intelligent IC checks the drop in battery voltage and provide a pulse to Thyristor through Gate to conduct and provide the output to battery at the same time when battery is fully charged the gate voltage is made zero because drain-source current is also almost zero hence the Thyristor stops conducting and stops providing output to charge the battery. So when the Battery is fully charged no overcharging is there to damage the Battery. At this stage Output voltage remains same but Charging current is zero. It is called as Float mode.
Technical Specifications :
- Input Supply Voltage : 360Vac-450Vac @ 50Hz.
- Batteries to be Charged : 110Vdc.
- Charging Voltage IN Boost : 125-130Vdc.selectable.
- Charging Voltage IN float: 120-125Vdc. selectable.
- Three Outputs with fixed regulated voltage : 110Vdc ( No matter charging voltage is 125V or 130V)
- Output Load Capacity : 32A max.
- Ripple < 0.5%.
- Input spike voltage withstand : 2KV for 2-3 sec.
- Operating temp range : 5 deg. C to 50 deg. C. Recomended between 25 Deg. C to 40 Deg C.
- Connections : As per Terminal detail provided.
- Dimensions . 550*550*1425 (W*D*H) MM.
